Water Fed Pole Electrical Hazards

⚠️ Critical Safety Information: Please Read!

Working near electrical hazards demands more than caution; it requires the right knowledge and preparation. This guide walks you through essential safety practices, including jobsite assessments, proper PPE, equipment selection, and maintaining safe working distances. You’ll learn how to recognize electrical risks, choose the correct gear, and set clear safety zones to reduce danger. Following these best practices helps ensure compliance with safety standards while protecting your crew from serious, potentially life-threatening accidents.

Jobsite Survey

Every effective safety program starts with a thorough jobsite hazard assessment. When it comes to electrical safety, the first step is simply identifying whether an electrical hazard exists on or near the jobsite. At this stage, there’s no need to determine minimum approach distances or establish drop zones; your focus is solely on confirming the presence of a hazard. For owner-operators, this identification should trigger the next safety steps. For employers, the hazard must be clearly communicated to employees through a Job Hazard Analysis and a Work Site-Specific Safety Plan.

REFERENCES

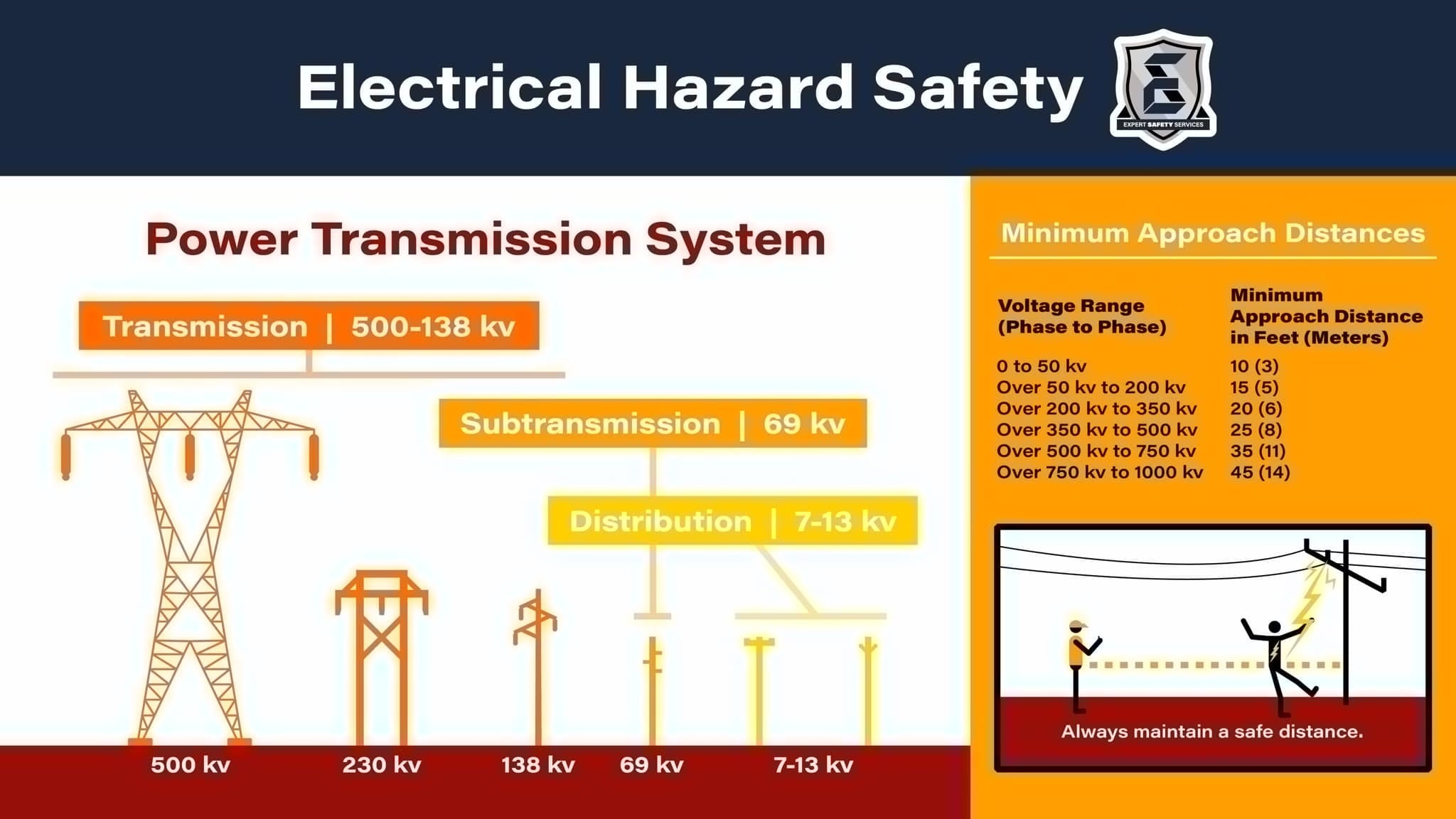

Establishing Minimum Approach Distances

Establishing a minimum approach distance (MAD) is essential when working near electrical hazards. Extra care must be taken to prevent accidental contact or arcing from overhead power lines. While nonconductive poles and proper PPE are critical safety measures, they do not replace the need to avoid the hazard altogether.

Minimum approach distances are determined by first identifying the voltage present near the jobsite. This information serves as a guide for setting a safe working distance. Power poles can often help indicate voltage levels. Once the voltage is known, you can establish how far to stay from power lines to prevent contact or potential arcing.

REFERENCES

Establishing Drop Zone

Once the minimum approach distance (MAD) has been established, the next step is setting a drop zone around overhead power lines. This involves evaluating the work area and allowing enough clearance in all directions so that, if the pole were dropped at any 360-degree angle, it would not contact an electrical hazard.

To ensure the MAD is properly accounted for, use the following calculation:

** Extended pole length + one-third of the extended length + MAD **

For Example:

If using a 40ft pole but it is extended 30ft to work area we would establish a drop zone in a 360-degree angle of 50ft.

Here is the calculation:

30ft+10ft (1/3 of extended length) +10ft (minimum MAD) = 50ft of Drop Area

Personal Protective Equipment

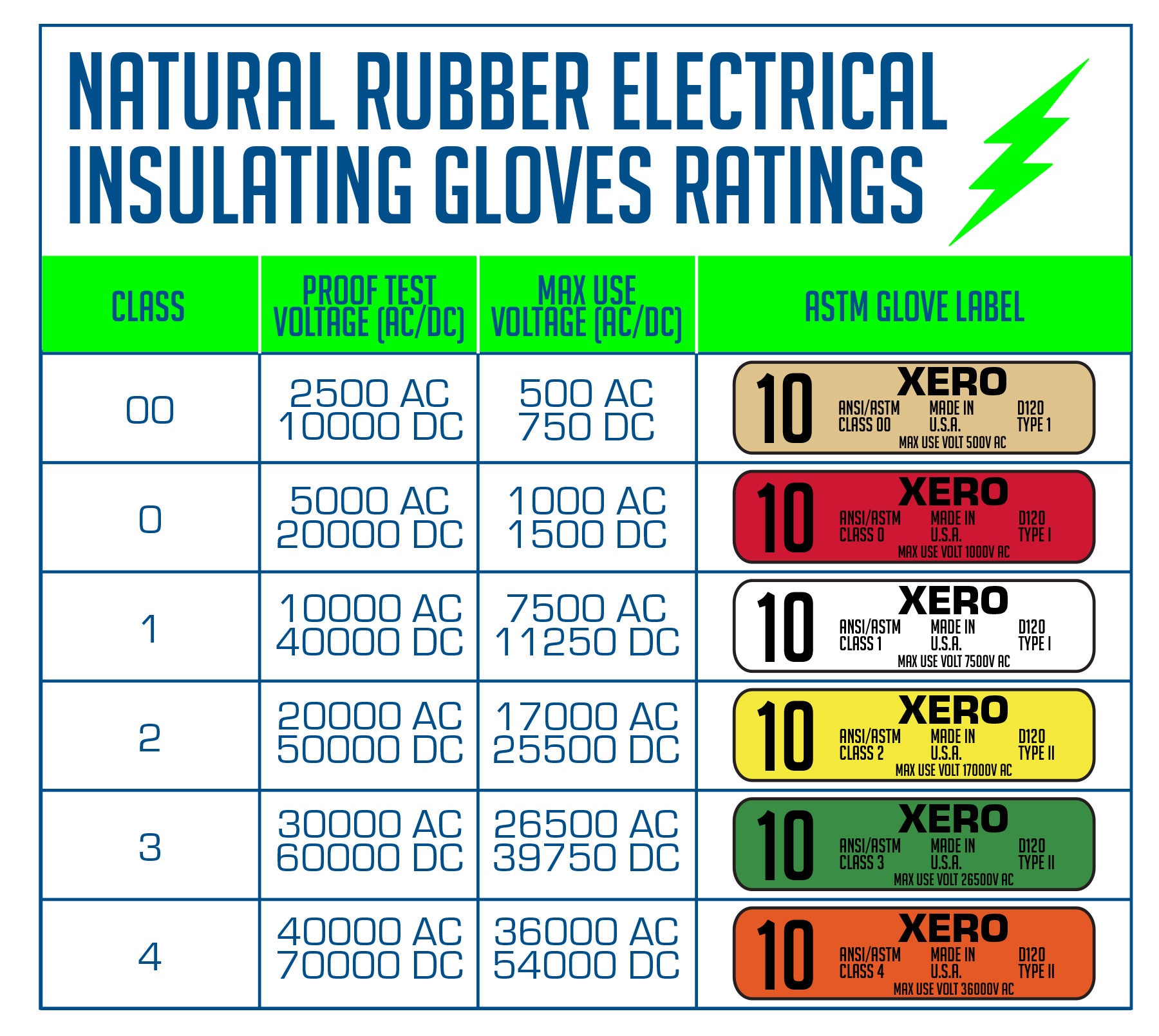

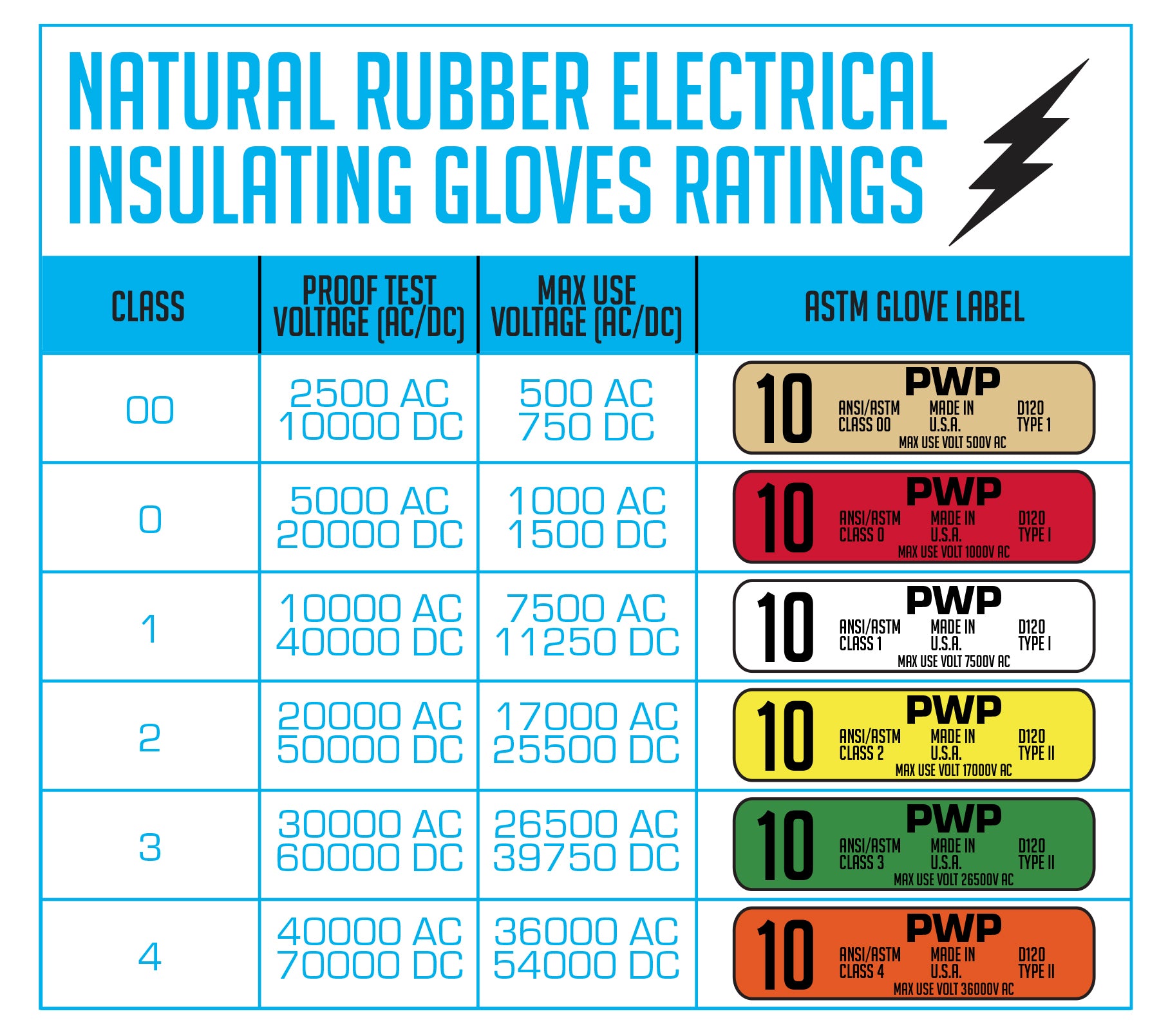

When an electrical hazard is present, operators and employees must wear appropriate personal protective equipment (PPE). This includes properly rated electrical gloves and dielectric footwear. Due to the extended reach of water-fed poles, PPE should always be worn when electrical hazards are present or nearby.

Several accidents have occurred when operators were caught off guard by a pole’s extended length or by higher voltages that can arc without direct contact. In many cases, the danger wasn’t recognized until it was too late, resulting in serious injury or death. Electrical gloves help protect the hands and prevent current from entering the body, while dielectric boots reduce the risk of grounding. Footwear should be clearly labeled with an ASTM “EH” (Electrical Hazard) rating.

Always use manufacturer-approved, properly rated PPE, and never assume a material is nonconductive without verified certification.

REFERENCES

REQUIREMENTS THAT MUST BE MET FOR BOOTS:

  • ASTM F-2412-2011 ASTM F-2413-2011
  • Non-Slip/Non-Conductive Safety Sole
  • 6" High Ankle Support
  • Steel/Composite Toe

Choosing the Right Equipment

Standard equipment may not provide adequate protection when working around electrical hazards. In these situations, it’s critical to use a water-fed pole with insulating properties in addition to proper PPE. At a minimum, the base section of the pole should be made from non-conductive materials. Combining a non-conductive pole with properly rated PPE offers the highest level of protection when working near electrical hazards.

REFERENCES
